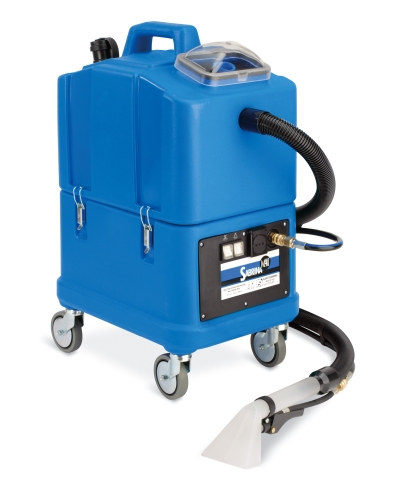

SW30 is a professional machine with 30-liter
tanks for long working autonomy. Sturdy and compact, easy to transport, it is
the ideal machine for cleaning upholstery and car interiors. Its narrow width
makes it particularly suitable for cleaning trains, buses, cinemas, and
airplanes.
The Santoemma High Waterlift vacuum system allows for excellent cleaning results and a very short drying time.
The hand tool for upholstery cleaning is available in either plastic (NS10PN)
or aluminum (NS10ALL). With an optional wand, carpet and floor surfaces can
also be cleaned.
With the optional instant hot water unit HT1800, the machine can clean with hot water, for excellent cleaning results.
Using the EVE.GUN-M manual gun and a specific chemical it is possible to prespray the carpet in order to soften the dirt before cleaning and quickly sanitize textile surfaces.
Interior cleaning of
cars, buses, trains, planes, cleaning companies.
- The size of the machine is small
compared to its tank capacity. The machine is easy to carry even in a small car.
- The High Waterlift vacuum system allows an excellent cleaning result and a very short drying time.
- Hand tool with robust design and in-frangible material, suitable for heavy use.
- Shape of the hand tool allowing to clean in hard-to-reach areas.
- Special profile of the vacuum tool, which allows a better suction, for a shorter drying time.
- Transparent hand tool, allowing to see the water recovered and the complete drying.
- Spraying valve specially designed to avoid any breaking.
- Quick disconnect spray nozzle, which can be removed by hand without using any tool. The nozzle can be easily cleaned.
- It is possible to attach to the machine the optional instant hot water unit HT1800, in order to make cleaning even more effective.
- High density polyethylene tanks, very strong and made for lasting a long time.
- Transparent unbreakable cover, which allows to see the dirty water while it is sucked.
- Drain pipe for easily emptying the recovery tank.
- Drain valve for draining completely the solution tank.
- The filter of the vacuum motor is easily removable for cleaning.
- The gaskets are replaceable by hand since they are not glued. Easy to clean and change.
- Strong wheels, in anti-mark rubber.
- Brass quick-disconnect couplings, reliable and strong.
- Water pump with bypass, which allows an automatic regulation of the optimal water flow according to the tool used. Moreover, the bypass device makes the pump more reliable and avoids problems in the years.
- Pump built on Santoemma specifications, for a longer life.
- Vacuum motor with thermal protection against overload.
- Vacuum motor treated against rust.
- Both motor and pump can work continuously.
- Modular design that makes the maintenance easier. The maintenance of the machine can be done at low costs.
|
Recovery tank capacity:
|
30 litres |
|
Clean water tank capacity:
|
30 litres |
|
Vacuum motor:
Power:
Maximum waterlift:
Maximum air-flow:
|
2 stages- High wterlift
1500 W
3000 mm H2O
50 l/sec. |
|
Pump with by-pass:
Power:
Maximum pressure:
Maximum water-flow:
|
vibrating
70 W
4 bar
1,5 l/min |
|
Cleaning width:
|
100 mm |
|
Number of nozzles:
|
1 |
Hot water unit:
| Optional (HT1800)
|
|
Cable length:
|
10 m |
|
Hose length:
|
5 m |
|
Weight (machine body):
|
23 kg |
|
Weight (packaged machine):
|
28 kg |
|
Dimensions:
|
cm 38 x 50 x 78 h |
|
Package dimensions:
|
cm 42 x 65 x 91 h |
|
Units/pallet:
|
8 pcs/pallet
(cm 84 x 130 x 194 h) |
|
Standard color:
|
Blue |
|
Tank construction:
|
High density polyethylene |
|
Sound pressure level (3m/1m - ISO3744):
|
67 dB(A) / 73 dB(A) |
|
Power supply:
|
cable - 220-240V 50-60Hz
(other voltages on request) |
Included accessories
The machine is supplied as standard with the following accessories:
Recommended accessories and devices
In order to optimize the results that can be obtained by this model, we suggest the adding the following accessories and special devices:
Other compatible accessories and devices
Below are listed all the accessories and devices that can be used with this machine
