FOOD processing areas cleaning and sanitizing program
Santoemma FOOD program includes a range of machines designed for cleaning different types of surfaces in food processing areas such as: supermarkets, food factories, industrial kitchens.
All the models of the range allow you to spray on the surfaces a cleaning and sanitizing compact foam and to rinse the same surfaces afterwards. Compact foam allows you to optimize the chemical cleaning and sanitizing action.
Rinsing is performed at an optimal pressure, which allows you to quickly remove the foam and dirt residuals. Rinsing at a controlled pressure avoids that any particle is jumping on other surfaces and prevents the creation of a haze of water vapors, which would keep in suspension the micro-organisms for several minutes. These micro-organisms would fall again on the surfaces after rinsing, affecting the efficacy of the bactericide action.
Some models of the range allow to vacuum the residual liquid as well, leaving the environments completely dry after cleaning operations.
The Santoemma FOOD program makes use of two technologies:
IdroFoamRinse FOOD models are innovative machines, patented by Santoemma, which allow you to spray foam and rinse continuously. The water used for foaming and rinsing is directly taken from the water network, therefore the machines have an unlimited autonomy. Pure chemical is contained in its separate tank and it is automatically used by the machine in a controlled quantity.
IdroFoamRinse FOOD models are indicated to clean all the areas where the presence of a drain in the floor makes vacuuming not necessary.

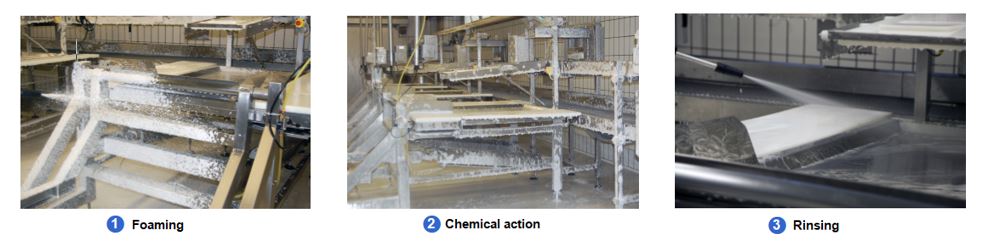

The cleaning and sanitizing process is carried out through three stages:
Spraying of foam on all the surfaces
Foam chemical and sanitizing action
Rinsing with clean water, at a controlled pressure
Using optional devices, the same machine also allows a chemical to be nebulized to quickly sanitize previously cleaned surfaces and environments.
Santoemma has developed 3 nebulization systems to provide the ideal solution in every situation:
a) nebulization@100micron - for surfaces
b) turbo-nebulization@50micron - for surfaces and environments
c) dryfog@7micron - for surfaces and environment
The IdroFoamRinse FOOD models, equipped with a specific gun, are able to nebulize the sanitizing chemical in the form of a liquid solution in 100 micron particles. With the nebulization at + the particles deposit evenly on the surfaces wetting them slightly and after a few minutes the particles evaporate, leaving the surfaces dry. In this way the chemical is able to act for the necessary time to carry out its sanitizing action. This is the ideal solution to quickly sanitize all washable surfaces.
The IdroFoamRinse FOOD models are able to nebulize a sanitizing chemical through a specific hand gun for turbo-nebulization@50micron. This gun allows you to deliver a mixture of air and very fine particles of pure sanitizing product with a diameter of only 50micron.
Their small size allows the particles to remain in suspension in the sanitizing air jet, which can reach points 4 meters away from the operator. By directing the jet appropriately, it can easily reach every point in the room and saturate small rooms quickly and evenly.
With turbo-nebulization@50micron, the particles wet surfaces very little, leaving them only slightly damp for a few minutes. In this way, the product is able to act for as long as it takes to perform its sanitizing action in all points.
Moreover, by adding a special Santoemma device, it is possible to deliver a sanitizing chemical in the form of 7 micron dry fog. The dry fog is delivered for a time sufficient to completely fill the rooms and then left to act for a few minutes in order to exercise its sanitizing action. This type of dry fog allows you to reach every point, without wetting the surfaces. The machine can be left inside the room to be treated. Alternatively, you can leave the machine out of the room, placing inside only the chemical tank.
The FRV FOOD range includes three machines, patented by Santoemma, which are able to spray foam, rinse and vacuum the residual liquid from floor. The three different models have been developed, with different performances and autonomies, in order to adapt to places of different sizes.

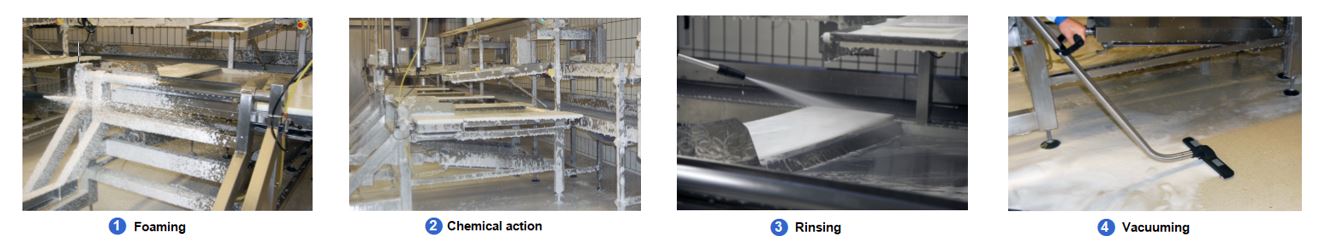

The cleaning and sanitizing process is carried out through four stages:
Spraying of foam on all the surfaces
Foam chemical and sanitizing action
Rinsing with clean water, at a controlled pressure
Vacuuming of residual water and dirt from floor.
Using optional devices, the same machine also allows a chemical to be nebulized to quickly sanitize previously cleaned surfaces and environments.
Santoemma has developed 3 nebulization systems to provide the ideal solution in every situation:
a) nebulization@100micron - for surfaces
b) turbo-nebulization@50micron - for surfaces and environments
c) dryfog@7micron - for surfaces and environment
The FRV FOOD models, equipped with a specific gun, are able to nebulize the sanitizing chemical in the form of a liquid solution in 100 micron particles. With the nebulization at + the particles deposit evenly on the surfaces wetting them slightly and after a few minutes the particles evaporate, leaving the surfaces dry. In this way the chemical is able to act for the necessary time to carry out its sanitizing action. This is the ideal solution to quickly sanitize all washable surfaces.
The FRV FOOD models are able to nebulize a sanitizing chemical through a specific hand gun for turbo-nebulization@50micron. This gun allows you to deliver a mixture of air and very fine particles of pure sanitizing product with a diameter of only 50micron.
Their small size allows the particles to remain in suspension in the sanitizing air jet, which can reach points 4 meters away from the operator. By directing the jet appropriately, it can easily reach every point in the room and saturate small rooms quickly and evenly.
With turbo-nebulization@50micron, the particles wet surfaces very little, leaving them only slightly damp for a few minutes. In this way, the product is able to act for as long as it takes to perform its sanitizing action in all points.
Moreover, by adding a special Santoemma device, it is possible to deliver a sanitizing chemical in the form of 7 micron dry fog. The dry fog is delivered for a time sufficient to completely fill the rooms and then left to act for a few minutes in order to exercise its sanitizing action. This type of dry fog allows you to reach every point, without wetting the surfaces. The machine can be left inside the room to be treated. Alternatively, you can leave the machine out of the room, placing inside only the chemical tank.
The machines of Santoemma FOOD program can be used in a variety of environments.
By clicking on the area it is possible to view the most suitable machines.
IdroFoamRinse FOOD 200
IdroFoamRinse FOOD 400
IdroFoamRinse FOOD 600
FRV FOOD 15
FRV FOOD 30
FRV FOOD 70
Approximate performance:
Surface of 40m²
Surface of 120m²
Surface of 120m²
Surface of 25m²
Surface of 50m²
Surface of 120m²
1) Complete cleaning and sanitizing:
Time: Chemical consumption:
Water consumption: Defoamer consumption:
10 min 250 gr (10gr/m²) 14 liters -
20 min 1200 gr (10gr/m²) 70 liters -
20 min 1200 gr (10gr/m²) 70 liters -
10 min 250 gr (10gr/m²) 14 liters max 30 gr
15 min 500 gr (10gr/m²) 30 liters max 30 gr
25 min 1200 gr (10gr/m²) 70 liters max 70 gr
2) Quick sanitization:
2a) with Nebulization@100micron
Time: Chemical consumption:
Water consumption:
1 min 100 gr (2,5gr/m²) 2000 gr (50gr/m²)
2 min 200 gr (2gr/m²) 3500 gr (30gr/m²)
2 min 200 gr (2gr/m²) 3500 gr (30gr/m²)
1 min 60 gr (2,5gr/m²) 1200 gr (50gr/m²)
1 min 80 gr (2gr/m²) 1500 gr (30gr/m²)
2 min 200 gr (2gr/m²) 3500 gr (30gr/m²)
2b) with Turbo-Nebulization@50micron Time: Chemical consumption: Water consumption:
1 min 80 gr (2gr/m²) -
3 min 240 gr (2gr/m²) -
3 min 240 gr (2gr/m²) -
1 min 50 gr (2gr/m²) -
2 min 100 gr (2gr/m²) -
3 min 240 gr (2gr/m²) -
2c) with KIT for Dry Fog@7micron Time: Chemical consumption: Water consumption:
4 min 160 gr (4gr/m³) -
12 min 480 gr (4gr/m³) -
12 min 480 gr (4gr/m³) -
3 min 100 gr (4gr/m³) -
5 min 200 gr (4gr/m³) -
12 min 480 gr (4gr/m³) -
Recovery tank capacity:
-
-
-
14 litres
30 litres
70 litres
Clean water tank capacity:
-
-
-
14 litres
30 litres
70 litres
Chemical dilution:
Pre-set around 4%
Pre-set around 4%
Pre-set around 4%
Pre-set around 4%
Pre-set around 4%
Pre-set around 4%
Continuous filling system:
YES
YES
YES
YES
YES
YES
Vacuum motor: Power: Maximum waterlift: Maximum air-flow:
-
-
-
2 stages 1000 W 2200 mm H2O 50 l/sec.
2 stages 1000 W 2200 mm H2O 50 l/sec.
2x2 stages 2x1000 W 2200 mm H2O 100 l/sec.
Pump with bypass:
Power: Max pressure:
Rinse pressure: Rinse water-flow:
Membrane, internal by-pass 90 W 14 bar 4 bar 4,5 l/min
Piston type, adj. pressure 370 W 30 bar 18 bar 5,5 l/min
Piston type, adj. pressure 370 W 30 bar 18 bar 5,5 l/min
Membrane, internal by-pass 90 W 14 bar 3 bar 4 l/min
Piston type, adj. pressure 370 W 30 bar 16 bar 5 l/min
Piston type, adj. pressure 370 W 30 bar 16 bar 5 l/min
Compressor:
350 W
350 W
350W
350W
350W
350W
Cable length:
10 m
10 m
10 m
10 m
10 m
10 m
Weight (machine body):
38 Kg
59 Kg
59 Kg
55 Kg
93 Kg
105 Kg
Weight (packaged machine):
59 Kg
82 Kg
82 Kg
76 Kg
115 Kg
131 Kg
Dimensions:
cm 42 x 68 x 87 (h)
cm 60 x 87 x 98(h)
cm 60 x 87 x 98(h)
cm 38 x 70 x 86 (h)
cm 38 x 80 x 138 (h)
cm 54 x 100 x 138 (h)
Package dimensions:
cm 54 x 90 x 83 (h)
cm 65 x 102 x 86 (h)
cm 65 x 102 x 86 (h)
cm 54 x 90 x 115 (h)
cm 60 x 95 x 155 (h)
cm 65 x 102 x 155 (h)
Units/pallet:
1 pc/pallet cm 54 x 90 x 83 (h)
1 pc/pallet cm 65 x 102 x 86 (h)
1 pc/pallet cm 65 x 102 x 86 (h)
1 pc/pallet cm 54 x 90 x 115 (h)
1 pc/pallet cm 60 x 95 x 155 (h)
1 pc/pallet cm 65 x 102 x 155 (h)
Spray hose/Vacuum hose length:
10 m (spray only)
15 m (spray only)
15 m (spray only)
5/5 m
15/7,5 m
15/7,5 m
Noise pressure level - (3m/1m - ISO3744):
63 / 69 dB(A)
63 / 69 dB(A)
63 / 69 dB(A)
65 / 71 dB(A)
65 / 71 dB(A)
69 / 75 dB(A)
Power supply:
cable - 220-240V 50-60Hz (other voltages on request)
cable - 220-240V 50-60Hz (other voltages on request)
