EVELINE

Eveline System

Complete cleaning and sanitizing of 100-200sqm furnished areas

Eveline is the Santoemma patented system for complete cleaning and sanitizing of 100-200 square meters furnished places, with areas of different type: restrooms, working areas, offices, walkways, store-rooms, changing rooms, kitchens, café and restoration areas.

Eveline allows you to perfectly clean and sanitize vertical surfaces, sanitary fixtures and hard floor.


Video Player is loading.
Current Time 0:00
Duration -:-
Loaded: 0%
Stream Type LIVE
Remaining Time -:-

1x

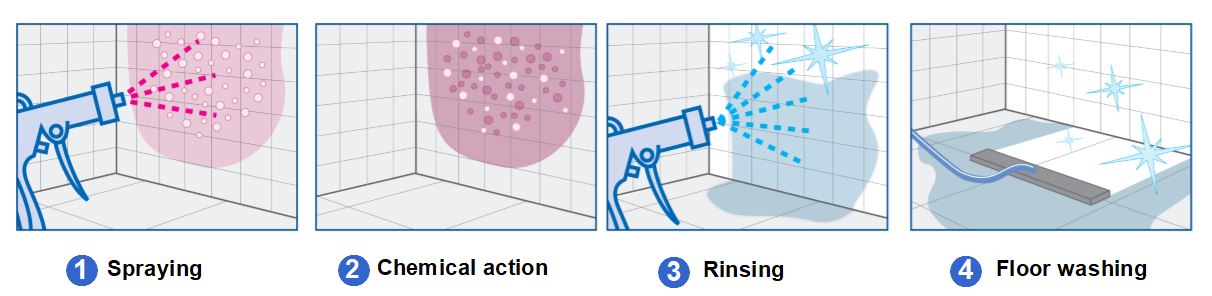

The cleaning and sanitizing process takes place in four stages:

  1. Spraying of chemical solution on vertical surfaces and sanitary fixtures
  2. Chemical action against dirt and bacteria
  3. Rinsing with clean water
  4. Rinsing the floor with the injection-extraction system

The manual gun allows you to spray concentrated chemical and to rinse vertical surfaces and sanitary fixtures.

The special wand included allows you to clean hard floors with the injection-extraction system: a chemical solution is sprayed on the floor and vacuumed. The dirt detached from the floor is completely removed thanks to the powerful vacuum and collected in the recovery tank.

Video Player is loading.
Current Time 0:00
Duration -:-
Loaded: 0%
Stream Type LIVE
Remaining Time -:-

1x

In few second the floor gets perfectly dry and with no effort.

It is possible to inject and vacuum simultaneously, or to inject, brush and then vacuum. A specific bristle on the vacuum head allows you to brush efficiently very dirty floors.



No manual dosing of detergent is necessary, as the machine automatically draws the right amount of detergent from the tank, mixing it with clean water taken from the tank. The chemical is used in the correct amount at all times and without waste.

Eveline completely removes dirt from walls and floors, leaving no residue on surfaces.

The rooms are completely clean, sanitized, dry and perfumed.

Eveline provides an effective, pleasant and fast cleaning system: it only takes 10 minutes to perform complete cleaning and sanitization of a 60sqm room !

Small and lightweight, Eveline can be easily transported from place to place and stored after use in a small space.

When to use Eveline?

To date, many operators perform cleaning using only manual equipment (mops, brushes, and sponges).

In this way, dirt is often not completely removed from surfaces and residual dirt is moved from one spot to another. Bacteria lurk and proliferate everywhere, also causing bad odors.

In addition to manual equipment, cleaning operators will be able to use Eveline for periodic cleaning and sanitizing of rooms, with more or less frequent interventions, even daily.

The operator will continue to perform some tasks manually, as he has always done. Periodically he will also use the machine, as often as he deems optimal.

Eveline can be used in 2 modes:

  1.  Complete cleaning and sanitizing of surfaces:
    The operator performs basic interventions using the machine at regular intervals. After these interventions, the rooms return clean, sanitized, dry and fragrant.
  2. Rapid sanitization of previously cleaned rooms:
    The operator performs daily maintenance cleaning using hand equipment, once or several times a day. Then he/she may use the machine to quickly sanitize the newly cleaned rooms.

The two modes may each be used as often as needed.

Quick sanitization

Eveline also allows you to nebulizea chemical to quickly sanitize previously cleaned surfaces and environments. 2 sanitizing systems can be used:

a) nebulization@100micron - for surfaces

b) turbo-nebulization@50micron - for surfaces and environments.

Nebulization@100micron

With a specific manual gun it is possible to nebulize a sanitizing chemical in the form of a liquid solution in 100 micron particles. With the nebulization at 100 micron the particles deposit evenly on the surfaces wetting them slightly and after a few minutes the particles evaporate, leaving the surfaces dry. In this way the chemical is able to act for the necessary time to carry out its sanitizing action. This is the ideal solution to quickly sanitize all washable surfaces .



Video Player is loading.
Current Time 0:00
Duration -:-
Loaded: 0%
Stream Type LIVE
Remaining Time -:-

1x

Turbo-Nebulization@50micron

With a specific hand gun supplied with the machine, it is possible to perform surface sanitization with turbo-nebulization@50micron.

Video Player is loading.
Current Time 0:00
Duration -:-
Loaded: 0%
Stream Type LIVE
Remaining Time -:-

1x

With the gun for turbo-nebulization@50micron it is possible to deliver a mixture of air and very fine particles of pure sanitizing product with a diameter of only 50micron.

Their small size allows the particles to remain in suspension in the sanitizing air jet, which can reach points 4 meters away from the operator. By directing the jet appropriately, it can easily reach every point in the room and saturate small rooms quickly and evenly

With turbo-nebulization@50micron, the particles wet surfaces very little, leaving them only slightly damp for a few minutes. In this way, the product is able to act for as long as it takes to perform its sanitizing action in all points.

This system is ideal to quickly sanitize:

  • Restrooms (sinks, sanitary fixtures, tiled surfaces)
  • Food preparation areas (work tables, transport trolleys, equipment)
  • All types of washable surfaces.

  1. Complete cleaning and sanitizing The chemical solution sprayed acts on all the surfaces, ensuring both cleaning and sanitizing also in corners not easily reachable with manual tools. Laboratory tests certify that Eveline eliminates 99.9% of bacteria.
  2. Greatest hygienic safety for the operator , who does not come in touch with the objects and the surfaces to be cleaned.
  3. Reduced labour for the operator . Manual work is reduced to a minimum, since the dirt is removed by the solution chemical action and the following rinsing and vacuuming.
  4. Ease of use . Using the machine is very simple and does not require any training for the operator.
  5. Saving of time . Any place can be completely cleaned, sanitized and dried in less than one third of the time required with manual tools.
  6. Saving of chemical. Chemical is never wasted because it is automatically dosed by the machine in an optimal quantity.
  7. Reduced electrical consumption . The machine requires only minimal electrical power and can be used in any place.
  8. Maximum versatility. Eveline can be used efficiently in many areas.

The Eveline system can be used in many places. Here are some of the most common applications.

By clicking on the environment, you can view more information.



Eveline

Eveline-Battery

Approximate performance: room with 60m² of tiles
1) Complete cleaning and sanitizing:
    Time:

     Chemical consumption:
     Water consumption:
     Defoamer consumption:


10 min
200 gr (3gr/m²)
14 liters
-

2) Quick sanitization:
2a) with gun fot Nebulization@100micron
        Time:
        Chemical consumption:
        Water consumption:


3 min
60 gr (1gr/m²)
600 gr (10gr/m²)
2b) with gun for Turbo-Nebulization@50micron
        Time:
        Chemical consumption:
        Water consumption:


2 min
120 gr (2gr/m²)
-
Recovery tank capacity: 14 litres
Clean water tank capacity: 14 litres

Vacuum motor:
Power:
Maximum waterlift:
Maximum air-flow:

2 stages
1000 W
2200 mm H2O
50 l/sec.

2 stages
500 W
1300 mm H2O
45 l/sec.

Pump with bypass:
Power:
Maximum pressure:
Maximum water-flow:

Vibrating
2x70 W
5 bar
2,5 l/min

Membrane
40 W
2,8 bar
3 l/min
Batteries: - 2 x 12 - 33Ah
Battery charger: - on board - 5A
Cleaning width: 400mm400mm
Brush:Optional-

Cable length:

10 m

-

Hose lenght (spray hose/vacuum hose):

5/3m

5/3m

Weight (machine body):

23 Kg

50 Kg

Weight (packaged machine):

26 Kg

61 Kg

Dimensions:

cm 30 x 74 x 88 (h)

cm 30 x 74 x 94 (h)

Weight (machine body):

cm 36 x 60 x 80 (h)

cm 42 x 65 x 103 (h)
Units/pallet: 8 pcs/pallet
(80 x 120 X 173 h)
1 pc/pallet
(42 x 65 x 103 h)
Standard color: Blue Blue
Tank construction: High density polyethylene High density polyethylene
Noise pressure level (3m/1m - ISO3744):  66 dB(A) / 72 dB(A) 63 dB(A) / 69 dB(A)
Power supply: cable - 220-240V 50-60Hz
(other voltages on request)
with standard battery charger 220-240V 50-60Hz (other voltage on demand)
International Patents:
EP 4243663 + US 18/036210 + CN 202180076065.2 EP 4243663 + US 18/036210 + CN 202180076065.2
