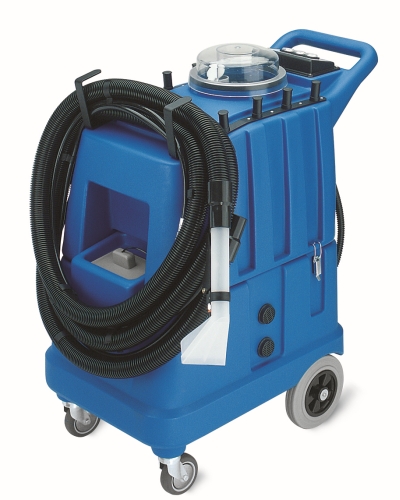

SW70 is a professional extractor with two 3-stages High Waterlift vacuum motors.
The Santoemma high-waterlift vacuum system
allows to recover the maximum quantity
of dirt from fabrics and to get a shortest drying time
The two tanks, 70 litres each, enable a long autonomy of operation.
Dedicated brackets allow to hang hoses and wand on the machine, to
easily move the complete machine from site to site.

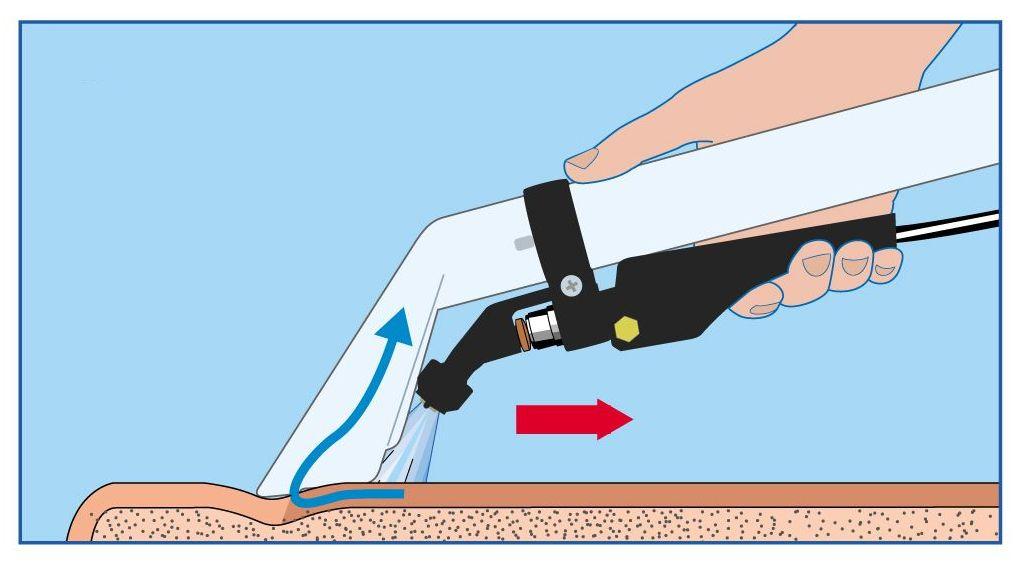

The hand-tool for upholstery cleaning is available in plastic (NS10PN) or in aluminium (NS10ALL). With an optional wand it is possible to clean carpets and hard floors as well.

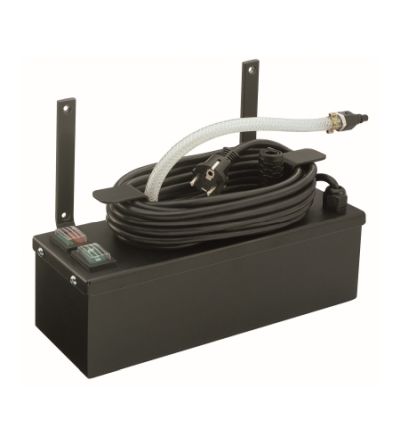

With the optional instant hot water unit HT1800, the machine can clean with hot water, for an excellent cleaning result.
The optional device SMARTKIT-SW50C allows you to perform chemical automatic dilution, prespray and rinsing.
Car washes, cleaning companies.
- The two special 3-stages High Waterlift motors allow an excellent cleaning result and a very short drying time.
- The vacuum power allows a fast cleaning.
- Long working autonomy thanks to the big tanks, 70 litres each.
- Hand tool with robust design and in-frangible material, suitable for heavy use.
- Shape of the hand tool allowing to clean in hard-to-reach areas.
- Special profile of the vacuum tool, which allows a better suction, for a shorter drying time.
- Transparent hand tool, allowing to see the water recovered and the complete drying.
- Spraying valve specially designed to avoid any breaking.
- Quick disconnect spray nozzle, which can be removed by hand without using any tool. The nozzle can be easily cleaned.
- It is possible to attach to the machine the optional instant hot water unit HT1800, in order to make cleaning even more effective.
- The optional device SMARTKIT-SW50C allows you to perform chemical automatic dilution, prespray and rinsing.
- Detachable tanks. The machine can be carried easily even in a small car.
- High density polyethylene tanks, very strong and made for lasting a long time.
- Transparent unbreakable cover, which allows to see the dirty water while it is sucked.
- Easy to reach hole for filling the tank with clean water.
- Drainpipe for easily emptying the recovery tank.
- Drain valve for draining completely the solution tank.
-
The filter of the vacuum motor is easy to reach and removable for an
easy cleaning. Its large filtering surface area allows it to work for a
long time at maximum suction power.
- The gaskets are replaceable by hand since they are not glued. Easy to clean and change.
- Strong wheels, in antimark rubber.
- Brass quick-disconnect couplings, reliable and strong.
- Water pump with bypass, which allows an automatic regulation of the optimal water flow according to the tool used. Moreover, the bypass device makes the pump more reliable and avoids problems in the years.
- Pump built on Santoemma specifications, for a longer life.
- Vacuum motor with thermal protection against overload.
- Vacuum motor treated against rust.
- Both motor and pump can work continuously.
- Modular design that makes the maintenance easier. The maintenance of the machine can be done at low costs.
|
Recovery tank capacity:
|
70 litres |
|
Clean water tank capacity:
|
70 litres |
|
Vacuum motor:
Power:
Maximum waterlift:
Maximum air-flow:
|
2 motors - 3 stages- High wterlift
2 x 1500 W
3400 mm H2O
90 l/sec. |
|
Pump with by-pass:
Power:
Maximum pressure:
Maximum water-flow:
|
vibrating
70 W
4 bar
1,5 l/min |
|
Cleaning width:
|
100 mm |
|
Number of nozzles:
|
1 |
|
Instant hot water unit:
| Optional (HT1800)
|
SMARTKIT system
(for automatic chemical dosing, prespray and rinsing):
| Optional (SMARTKIT-SW50C)
|
|
Cable length:
|
15 m |
|
Hose length:
|
5 m |
|
Weight (machine body):
|
56 kg |
|
Weight (packaged machine):
|
62 kg |
|
Dimensions:
|
cm 50 x 89 x 98 h |
|
Package dimensions:
|
cm 57 x 94 x 98 h |
|
Units/pallet:
|
4 pcs/pallet
(cm 94 x 120 x 210 h) |
|
Standard color:
|
Blue |
|
Tank construction:
|
High density polyethylene |
|
Sound pressure level (3m/1m - ISO3744):
|
67 dB(A)
/ 73 dB(A) |
|
Power supply:
|
cable - 220-240V 50-60Hz
(other voltages on request) |
Included accessories
The machine is supplied as standard with the following accessories:
Recommended accessories and devices
In order to optimize the results that can be obtained by this model, we suggest the adding the following accessories and special devices:
Other compatible accessories and devices
Below are listed all the accessories and devices that can be used with this machine
