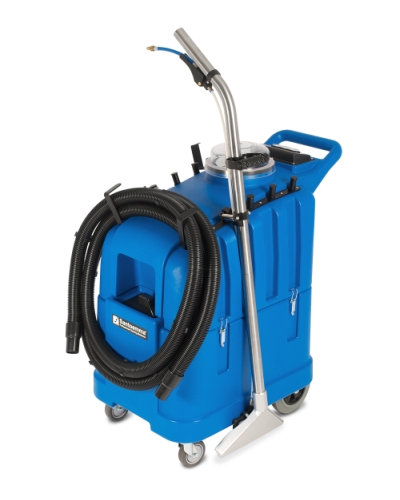

Grace-Silent is a
professional carpet extractor with 2 three stages high-waterlift vacuum motors for fast
cleaning of big areas of carpet. The Santoemma high-waterlift vacuum system allows
to recover the maximum quantity of dirt from carpet and to get a shortest
drying time.
The two tanks, 70 litres each, enable a long autonomy of
operation. Dedicated brackets allow to hang hoses and wand on the machine, to
easily move the complete machine from site to site.
Grace-Silent can be supplied with the instant
hot water unit HT1800 and with one of the optional power brush wands.
Adding the patented SMARTKIT system, it is possible to perform automatic
chemical dosing, carpet pre-spraying and rinsing.
Cleaning companies, cinemas, theatres, ferry boats, ships.
-
The 3-stages high-waterlift vacuum system allows incomparable dirt removal and shortest drying time: carpet can be dry in 1 hour!
-
The two high-waterlift vacuum motors enable unparalleled
drying at maximum working speed.
- Long working autonomy thanks to the big tanks, 70 litres
each.
- Carpet tool with aluminium vacuum head, practically indestructible.
- Special profile of the vacuum head, which allows to get the best suction even when the tool inclination changes.
- The height of the handle is adjustable, for greater ergonomics. The
handle allows the worker to lift the tool and to press the vacuum head
down on carpet with a very small effort.
- Spraying valve designed for avoiding any breaking.
- Tubes in stainless steel, strong and rustproof for the whole machine life.
- Quick disconnect spray nozzles, which can be removed by hand, without using any tool. The nozzles can be cleaned easily.
- It is possible to attach the optional instant hot water unit (HT1800) to the machine, in order to make the cleaning even more effective.
- Using one of the optional power-brush wands, it is possible to get excellent cleaning results, leaving carpet perfectly clean and dry in a single pass.
- Adding the patented SMARTKIT
system it is possible to perform automatic chemical dosing, pre-spraying and carpet rinsing.
- With the optional vacuum tool NS270TURBODUST, it is possible to vacuum dust before cleaning, with the same machine.
Detachable tanks. The machine can be carried easily even in a small car.
- High density polyethylene tanks, very strong and made for lasting a long
time.
- Transparent unbreakable cover, which allows to see the dirty water while
it is sucked.
- Easy to reach hole for filling the tank with clean water.
- Drainpipe for easily emptying the recovery tank.
-
The filter of the vacuum motor is easy to reach and removable for an
easy cleaning. Its large filtering surface area allows it to work for a
long time at maximum suction power.
- The gaskets are replaceable by hand since they are not glued. Easy to
clean and change.
- Strong wheels, in antimark rubber.
- Brass quick-disconnect couplings, reliable and strong.
- Water pump with internal bypass, which allows an automatic regulation of
the optimal water flow according to the tool used. Moreover, the bypass device
makes the pump more reliable and avoids problems in the years.
- Water pump with external rectifier, specially sized for a greater
reliability.
- Vacuum motors with thermal protection against overload.
- Vacuum motors treated against rust.
- Both motor and pump can work continuously.
- Modular design that makes the maintenance easier. It can be done at low costs.
Approximate performance (basic machine)*:
|
50-100 mē/h |

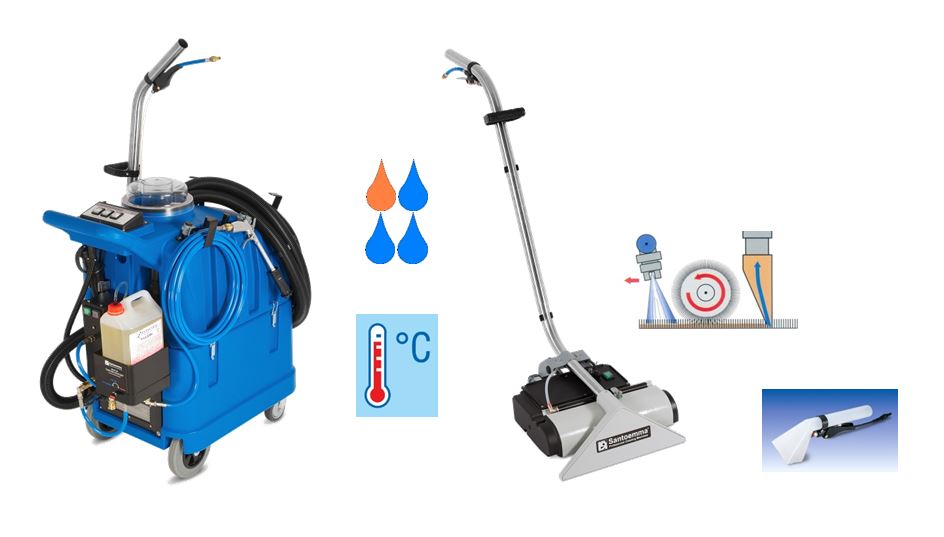

Approximate performance (Professional SET)*:
|
160-220 mē/h |
Recovery tank capacity:
|
70 litres |
Solution tank capacity:
|
70 litres |
|
Vacuum motor:
Power:
Maximum waterlift:
Maximum air-flow:
|
2 motors - 3 stages - High waterlift
2 x 1500 W
3400 mm H2O
90 l/sec. |
Pump with by-pass:
Power:
Maximum pressure:
Maximum water-flow:
|
membrane
80 W
9 bar
4,5 l/min |
Cleaning width (carpet/hard floor):
|
300 mm |
Number of nozzles:
|
3 |
Hot water unit:
| Optional (HT1800)
|
Rotating brush:
|
Optional |
SMARTKIT system (for automatic chemical dosing, prespray and rinsing):
|
Optional
(SMARTKIT-EL+PRESPRAY-EL) |
Cable lenght:
|
15 m |
Hose lenght:
|
7,5 m |
Weight (machine body):
|
57 kg |
Weight (packaged machine):
|
69 Kg |
|
Dimensions:
|
cm 54 x 89 x 98 h |
Package dimensions:
|
cm 57 x 94 x 98 h |
Units/pallet:
|
4 pcs / pallet
(cm 94 x 120 x 210 h) |
Standard color:
|
Blue |
Tank construction:
|
High density polyethylene
|
Sound pressure level (3m/1m - ISO3744):
|
67 db(A)
/ 73 db(A) |
Power supply:
|
cable - 220-240V 50-60Hz
(other voltages on request)
|
|
(*)
The effective performance depends on the type of cleaning required: restorative deep cleaning - maintenance cleaning.
|
Included accessories
The machine is supplied as standard with the following accessories:
Recommended accessories and devices
In order to optimize the results that can be obtained by this model, we suggest the adding the following accessories and special devices:
Other compatible accessories and devices
Below are listed all the accessories and devices that can be used with this machine
