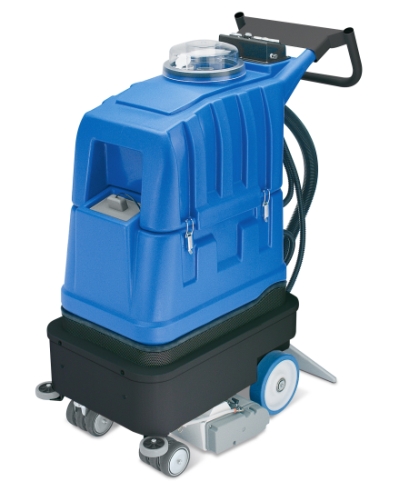

Elite-Battery
is a battery self-contained machine for cleaning large areas of carpet.
It washes, brushes and dries a stripe of 50 cm of carpet, moving forward
with adjustable speed, moving forward with adjustable speed, cleaning up to 500 square meters in one hour.
Elite-Battery is an extremely quiet machine.
Without power cord, it is easy to operate with Elite-Battery in large
areas, for example in hotels, shopping centres, airports, convention
rooms.
The machine is equipped with a drive motor with differential that allows the machine to turn without
effort, giving it a good manoeuvrability even in narrow areas, as for
example in corridors
Brush pressure and suction port pressure are adjustable
according to the type of carpet to be treated.
The water flow rate can be adjusted to carry out deep
cleaningor low moisture maintenance cleaning.
Powerful-Silent can be supplied with the optional HT1800
instant hot water unit.

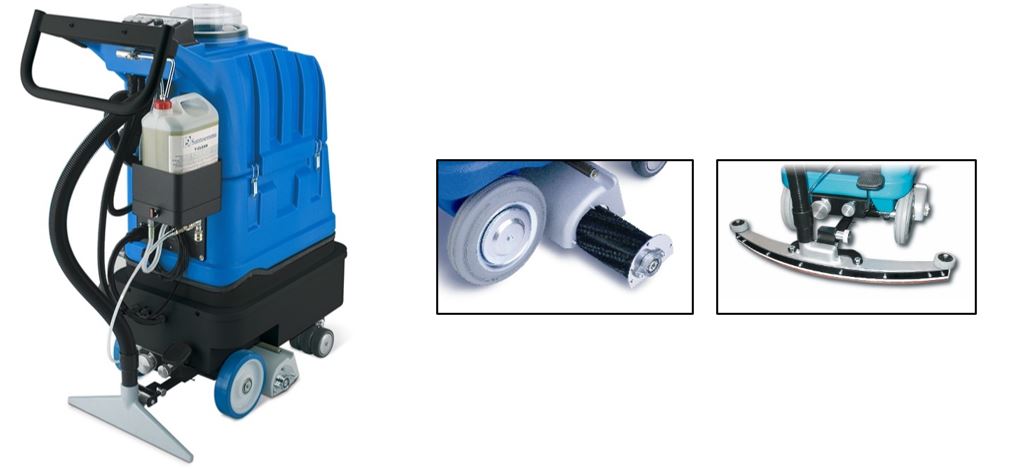

With the addition of the patented SMARTKIT system, automatic
chemical dosing, carpet pre-spray and rinsing can be performed.
The optional SQ720E squeegee enables cleaning of hard
floors. An additional brush, specifically for cleaning floors, is also
available.

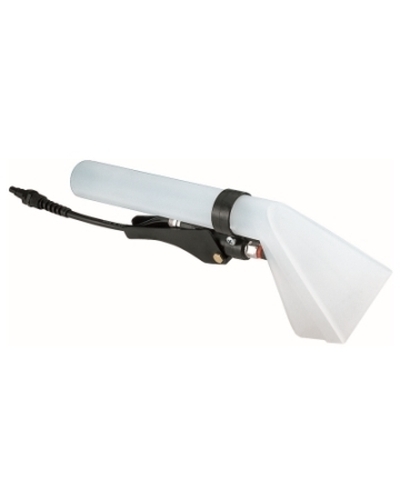

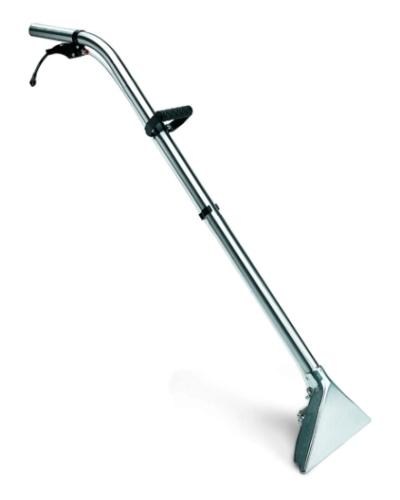

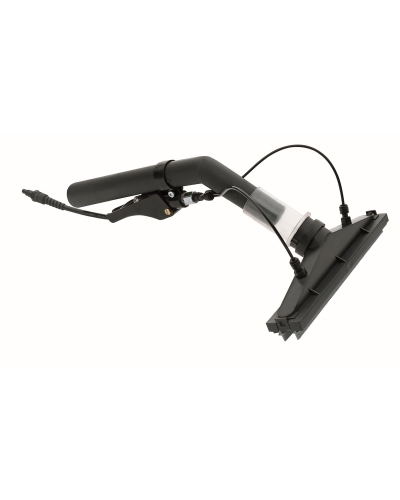

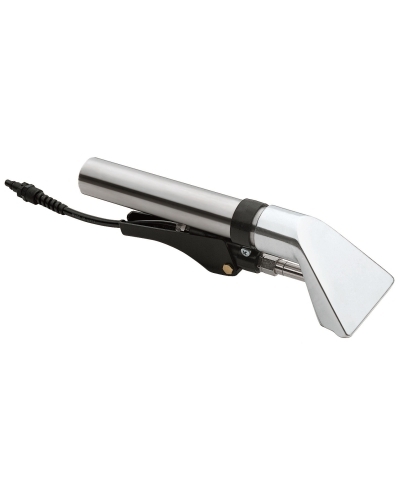

Optional external hoses and accessories can be attached to
the machine, such as a carpet cleaning wand or a hand tool for cleaning
upholstered fabrics and hard-to-reach corners.

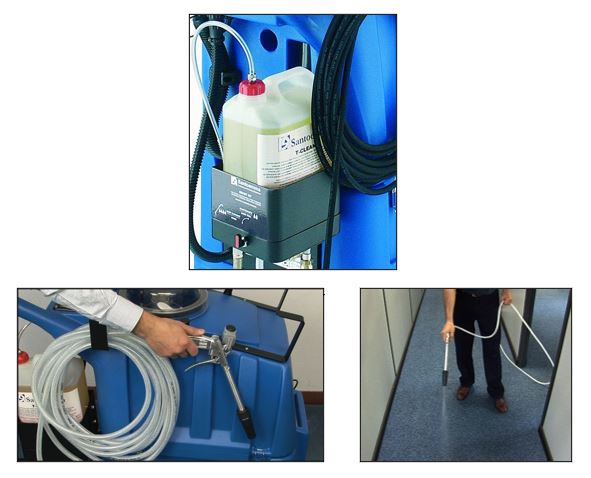

By adding the patented SMARTKIT system to Elite-Battery,
automatic dosing of the chemical, pre-spraying of the carpet with a
concentrated solution, and rinsing of the carpet can be carried out.
The concentrated chemical is contained in a canister, while
the machine tank contains only clean water. When the use of chemical is
required, the machine automatically uses it in the optimal concentration,
either during extraction cleaning or carpet pre-spray.

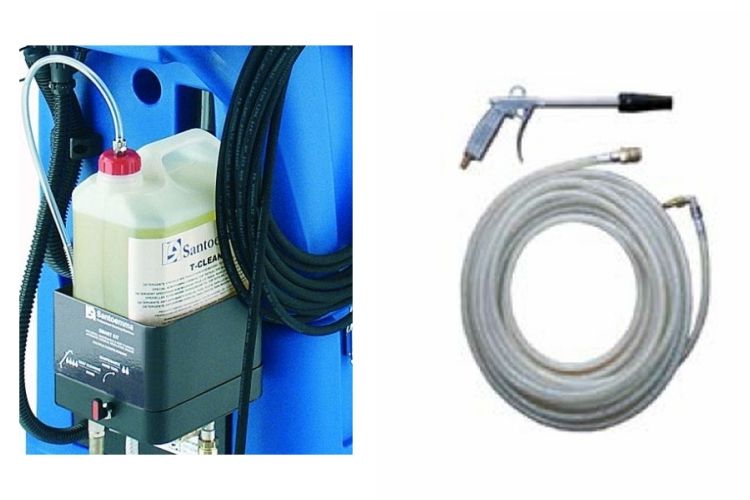

Using the special hose and gun, carpet prespray can be
carried out by spraying a concentrated solution of chemical, which is left to
act for a few minutes before extraction cleaning. The prolonged action of the chemical
facilitates the removal of dirt from the fibers, enabling better cleaning
results and speeding up subsequent cleaning operations.
During carpet extraction cleaning, the machine delivers a
controlled concentration of product without requiring the operator to perform
any dilution. This avoids incorrect concentrations and wastage of product.
With SMARTKIT, carpet rinsing can be carried out by simply
turning a lever. The rinsing step is recommended to remove any sticky residue
of chemical from the carpet fibers, which would otherwise cause rapid
re-washing after washing. By rinsing the carpet at the end of the cleaning
process, it will slowly resoil as it did when it was new.
If the prespray is carried out completely over the entire
surface, no additional chemical will need to be used in subsequent cleaning
operations, but extraction cleaning can be done using only clean water. In this way,
cleaning and rinsing are carried out at the same time, saving time, detergent
and water.
Using the machine with SMARTKIT in pre-spray mode, a
sanitizing solution can be sprayed onto the carpet with the hand gun. The
sprayed solution will act within minutes against bacteria and viruses.
Alternatively, the outlet of the SMARTKIT can be connected to the spray
manifold located under the machine. The carpet is sprayed and brushed by the
machine, which moves forward without vacuuming. In this way, large areas can be
treated in a short time (up to 1200 sq m/h).
In both cases, the SMARTKIT device performs automatic dosing
of the sanitizing chemical, providing optimal concentration and avoiding waste.
Quick carpet sanitization can be carried out periodically on
previously cleaned surfaces. Carpet cleaning and sanitizing can be carried out
using the same machine.

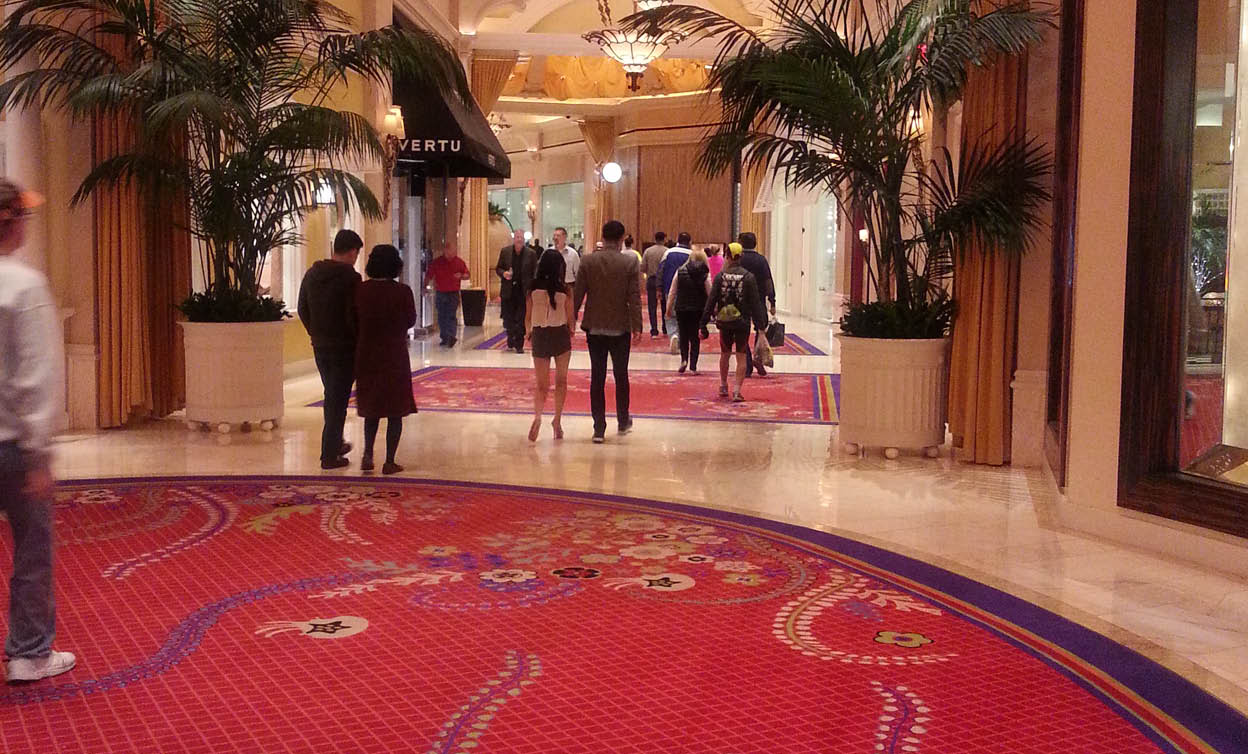

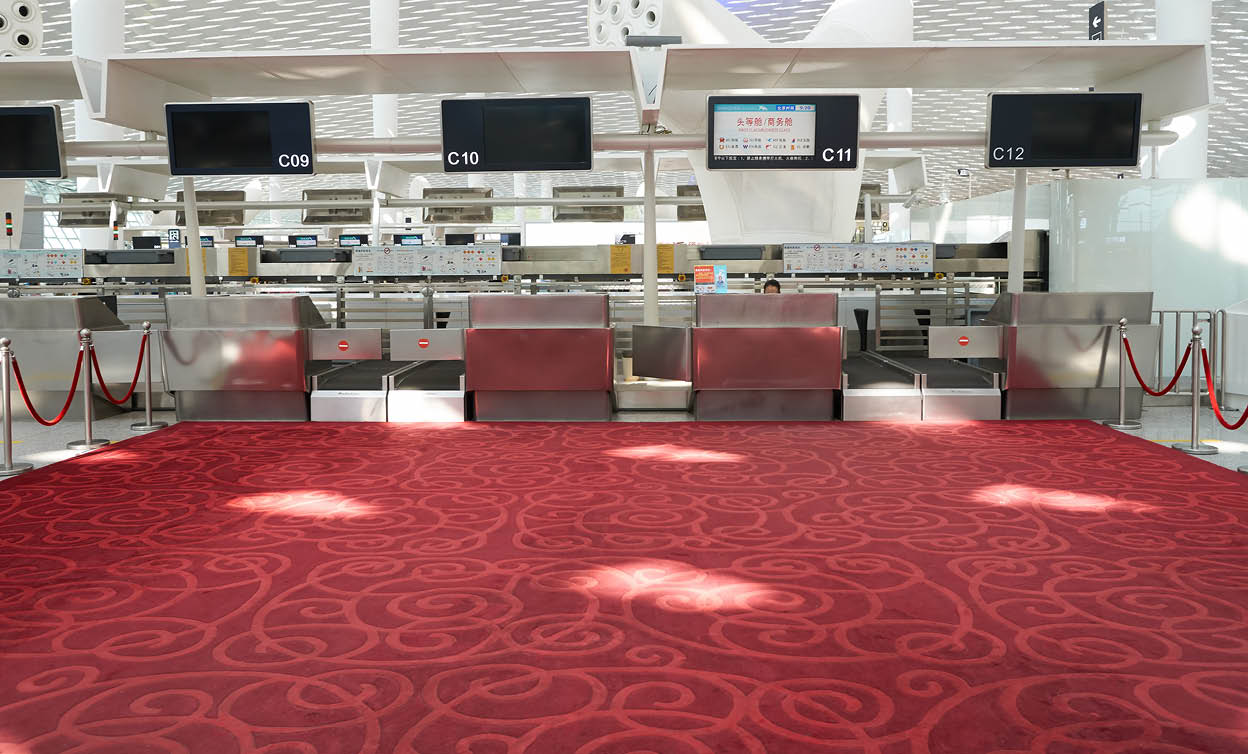

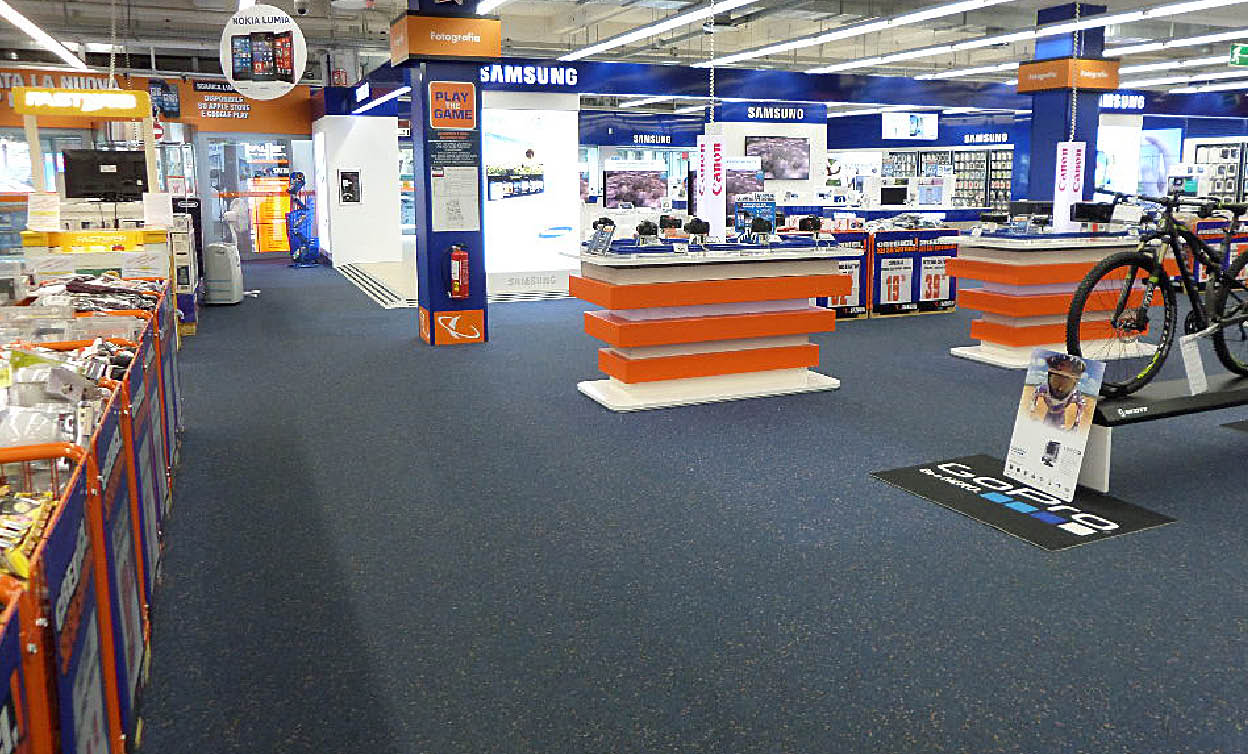

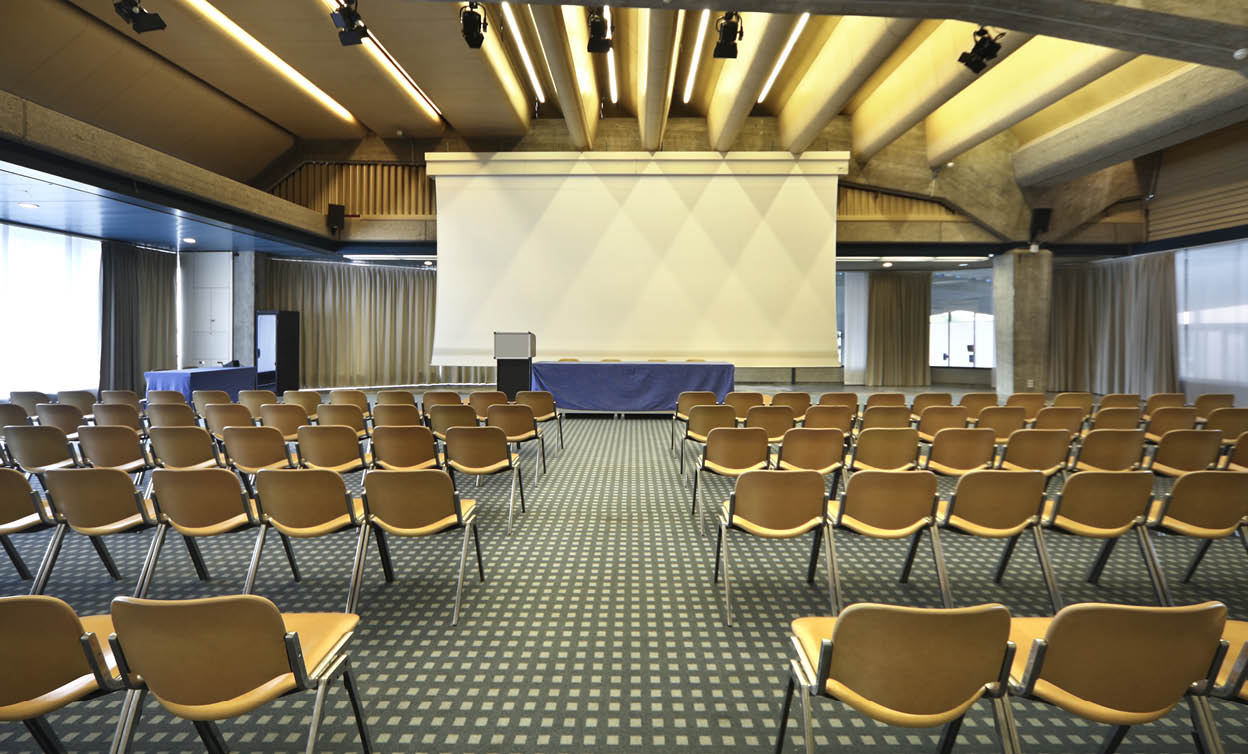

Cleaning companies, hotels, conference halls, offices, banks, cinemas, theatres, shops, ferry boats, ships, airports, fitness centres, school, universities, shopping centres, places of worship, mosques and all places with large surfaces of carpet.
-
It is possible to clean up to 500 sq meters in one hour, thanks to the working forward system of the machine.
-
The tanks, with 50 litres each, allow a long working autonomy and reduce
the idle time necessary for the tank filling and draining.
- Very light to operate even on thick carpet and on slopes thanks to the driving motor with adjustable speed.
-
Speed regulation that allows to maintain a constant speed on slopes.
- Very quiet operation, which allows the machine to be used
without discomfort to the operator and other people. The machine can also be
used during normal work activities and in particularly noise-sensitive
environments, such as hotels, offices, and banks.
- The supplied set of batteries uses special technology that
allows: more cycles, longer self-discharge time, and longer working range
(about 1h 15min).
- The
special batteries provided, together with the 25A battery charger inside the
machine allow ultra-rapid charging (about 3hrs per fully discharged machine).
- The three-stage high-waterlift vacuum system enables
unparalleled dirt removal and a very short drying time: carpet can be dried in
1 hour!
-
Powerful and reliable rotary brush motor for vigorous
brushing action.
-
Ability to adjust the height of the rotating brush to suit the
type of carpet and degree of dirt.
-
Replaceable brush easily and without turning the machine over.
-
By rotating a lever, it is possible to select deep
cleaning or maintenance cleaning mode, increasing or decreasing the flow rate
of water sprayed.
-
Special profile of the vacuum head for better drying.
- The sprung vacuum head allows the best suction also in case of uneven floor.
-
It is possible to regulate the pressure of the vacuum head according to the carpet thickness.
- All controls are placed at a comfortable height for the
operator.
-
The spraying of water can be continuous or otherwise activated by a spray lever.
-

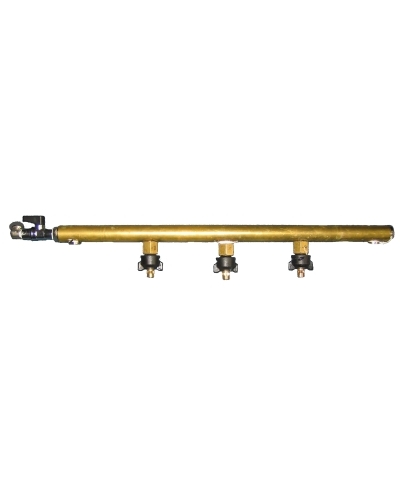

"Quick-disconnect" spray nozzles, replaceable by
hand without the use of tools. Nozzles can be cleaned easily. The entire nozzle
holder manifold can be taken out of the machine without having to bend the
machine to one side to disassemble the nozzles.
-
With the addition of the patented SMARTKIT system, automatic
chemical dosing, carpet pre-spray and rinsing is possible.
-

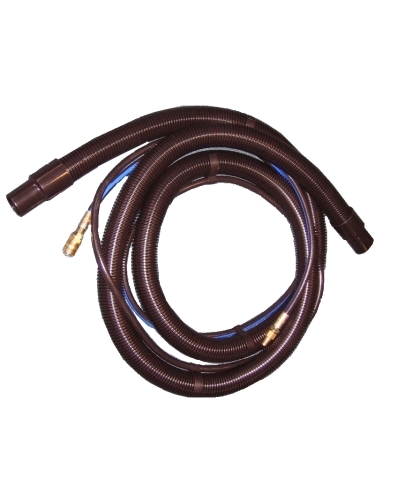

Possibility to connect the machine with optional external hoses and
accessories that can be attached to the machine, such as a carpet
cleaning wand or a hand tool for cleaning upholstered fabrics and
hard-to-reach corner.

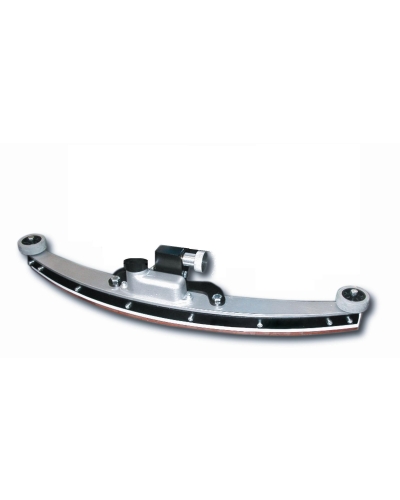

- Possibility to clean both carpet and hard floor
with a single machine by using the optional squeegee SQ720E. The
squeegee is connected to the machine thanks to a quick disconnect
coupling and does not require to use any tool.
-
Possibility to use an optional harder brush specific for hard floor.
- High density polyethylene tanks, very strong and made for lasting a long time.
- Transparent unbreakable cover, which allows to see the dirty water while it is sucked.
- Easy to reach hole for filling the tank with clean water.
- Drainpipe for easily emptying the recovery tank.
-
Drain valve for draining completely the solution tank.
-
The filter of the vacuum motor is easy to reach and removable for an
easy cleaning. Its large filtering surface area allows it to work for a
long time at maximum suction power.
-
Strong wheels, in antimark rubber.
- The gaskets are not glued and replaceable by hand. Easy to clean and change.
- Brass quick-disconnect couplings, reliable and strong.
- Water pump with internal bypass, which allows an automatic
regulation of the optimal water flow according to the tool used.
Moreover, the bypass device makes the pump more reliable and avoids
problems in the years.
- Vacuum motor with thermal protection against overload.
- Vacuum motor treated against rust.
- Both motor and pump can work continuously.
- Stainless steel brush bearings for a longer life.
-
Brush motor with thermal protection against overload.
- Modular design that makes the maintenance easier. It can be done at low costs.
Approximate performance (basic machine)*:
|
250-500 m²/h |

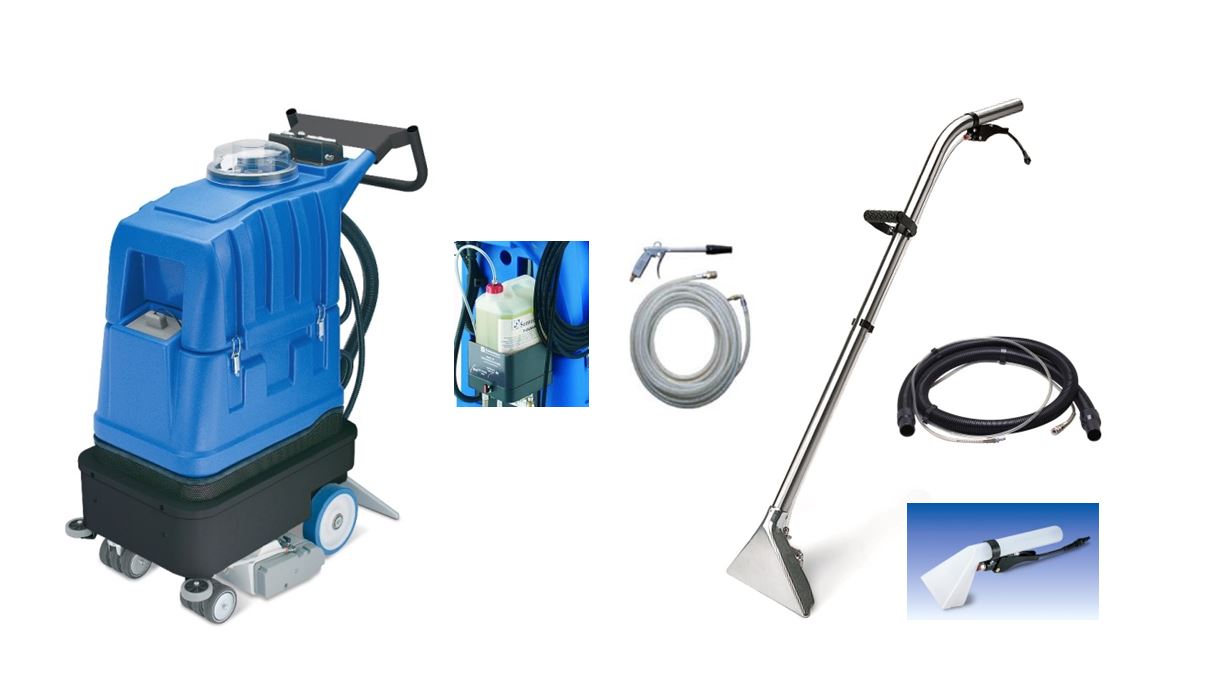

Approximate performance (professional SET)*:
|
300-550 m²/h |
Recovery tank capacity:
|
50 litres |
Solution tank capacity:
|
50 litres |
Vacuum motor:
Power:
Maximum waterlift:
Maximum air-flow:
|
3 stages - Highwaterlift
850 W 2500 mm H2O 45 l/sec. |
Pump with by-pass:
Power:
Maximum pressure:
Maximum water-flow:
|
membrane 80 W 9 bar 4,5 l/min |
Cleaning width (carpet/hard floor):
|
500/720 mm |
Number of nozzles:
|
5 |
Adjustable waterflow:
|
Yes |
Brush:
|
120 W 840 rot/min 464 mm |
Drive motor:
|
250W adjustable speed with differential |
SMARTKIT system (for automatic chemical dosing, prespray and rinsing):
|
Optional (SMARTKIT-EL + PRESPRAY-EL) |
Hose lenght:
|
Optional |
Weight (machine body):
|
137 kg (including batteries) |
Weight (packaged machine):
|
162 kg (including batteries) |
Dimensions:
|
cm 50 x 102 x 111 h |
Package dimensions:
|
cm 65 x 110 x 130 h |
Units/pallet:
|
1 pc / pallet (cm 65 x 110 x 130 h) |
Batteries:
|
3 x12V - 38Ah - Tot 39 Kg |
Working autonomy:
| about 1h 15 min
|
Recharge Time:
| about 3h
|
Standard color:
|
Blue |
Tank construction:
|
High density polyethylene |
Sound pressure level - ISO3744 (1m):
|
60 dB(A)
/ 66 dB(A)
|
Power supply:
|
With standard internal quick charge battery charger 25A 220-240V 50-60Hz (other voltage on demand)
|
(*) The effective performance depends on the type of cleaning required: restorative deep cleaning - maintenance cleaning. |
La macchina è fornita completa per la pulizia della moquette e comprende 3 batterie 12V-38Ah ciascuna, a carica rapida, e caricabatterie interno da 25A.
