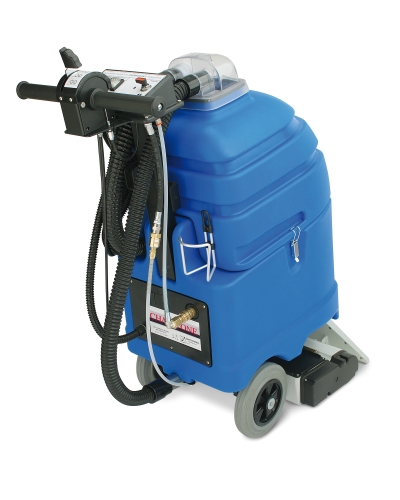

Charis-ONE is a self-contained machine, for cleaning middle sized carpeted areas.
With its quiet operation, it is possible to work without
disturbing people nearby.
With Charis-ONE it is possible to clean a 40cm strip of carpet perfectly, removing the dirt from the base of carpet fibres.
Even very dirty carpets
are thoroughly cleaned in a single pass.
The Santoemma high waterlift vacuum system allows excellent dirt removal and a very short drying time.
By rotating a special lever, it is possible to select deep
cleaning or low moisture maintenance cleaning mode, increasing or decreasing
the flow rate of water sprayed.
Charis-ONE can be supplied with the optional HT1800
instant heater.
With the addition of the patented SMARTKIT system it is possible to perform automatic
chemical dosing, carpet pre-spray and rinsing.
External accessories can be attached to the machine, such as
a carpet cleaning wand or a hand tool for cleaning upholstered fabrics and
hard-to-reach corners.
Adding the patented SMARTKIT system to Charis-ONE enables
automatic chemical dosing, carpet pre-spray with a concentrated solution, and
carpet rinsing.
The concentrated chemical is contained in a bottle, while
the machine tank contains only clean water. When the use of chemical is
required, the machine automatically uses it in the optimal concentration,
either during extraction cleaning or carpet prespray.
Using the special hose and gun, carpet prespray can be
carried out by spraying a concentrated solution of chemical, which is left to
act for a few minutes before cleaning. The prolonged action of the chemical
facilitates the removal of dirt from the fibers, enabling better cleaning
results and speeding up subsequent cleaning operations.
During carpet extraction cleaning, the machine delivers a
controlled concentration of product without requiring the operator to perform
any dilution. This avoids incorrect concentrations and wastage of product.
With SMARTKIT, carpet rinsing can be carried out by simply
turning a lever. The rinsing step is recommended to remove any sticky residue
of chemical from the carpet fibers, which would otherwise cause rapid
re-soiling after cleaning. By rinsing the carpet at the end of the cleaning
process, it will slowly resoil as it did when it was new.
If the prespray is carried out completely over the entire
surface, no additional chemical will need to be used in subsequent cleaning
operations, but cleaning can be done usingonly clean water. In this way, cleaning and rinsing are carried out at the same time, saving time, detergent
and water.
Cleaning companies, hotels, conference halls, restaurants, clubs, pubs, offices, banks, shops, cinemas, theatres, ferry boats, ships, airports, fitness centres, school, universities, shopping centres, places of worship, mosques and all places with middle-sized surfaces of carpet.
- Very quiet operation, which allows the machine to be used
without discomfort to the operator and other people. The machine can also be
used during normal work activities and in particularly noise-sensitive
environments, such as hotels, offices, and banks.
-
The three-stage high-waterlift vacuum system enables
unparalleled dirt removal and a very short drying time: carpet can be dried in
1 hour!
-
Powerful and reliable rotary brush motor for vigorous
brushing action.
-
Ability to adjust the height of the rotating brush to suit the
type of carpet and degree of dirt.
-
Replaceable brush easily and without turning the machine over.
-
By rotating a lever, it is possible to select deep
cleaning or maintenance cleaning mode, increasing or decreasing the flow rate
of water sprayed.
-
Special profile of the vacuum head for better drying.
-
All controls are placed at a comfortable height for the
operator.
-
Water spray operable by simply turning the machine's guide
knob.
-
"Quick-disconnect" spray nozzles, replaceable by
hand without the use of tools. Nozzles can be cleaned easily. The entire nozzle
holder manifold can be taken out of the machine without having to bend the
machine to one side to disassemble the nozzles.
-
Possibility of attaching the instant water heater (HT1800)
to the machine body to increase cleaning efficiency.
-
With the addition of the patented SMARTKIT system, automatic
chemical dosing, carpet pre-spray and rinsing is possible.
-
Possibility to connect the machine with optional external hoses and
accessories, such as a carpet
cleaning wand or a hand tool for cleaning upholstered fabrics and
hard-to-reach corner.
- High density polyethylene tanks, very strong and made for lasting a long time.
- Transparent unbreakable cover, which allows to see the dirty water while it is sucked.
- Easy to reach hole for filling the tank with clean water.
- Drainpipe for easily emptying the recovery tank.
-
The filters of the vacuum motor are easy to reach and removable for an easy cleaning.
- The gaskets are not glued and replaceable by hand. Easy to clean and change.
-
Strong wheels, in antimark rubber.
- Brass quick-disconnect couplings, reliable and strong.
- Water pump with internal bypass, which allows an automatic regulation of the optimal water flow according to the tool used. Moreover, the bypass device makes the pump more reliable and avoids problems in the years.
- Water pump with external rectifier, specially sized for a greater reliability.
- Vacuum motor with thermal protection against overload.
- Vacuum motor treated against rust.
- Both motor and pump can work continuously.
- Stainless steel brush bearings for a longer life.
-
Brush motor with thermal protection against overload.
- Modular design that makes the maintenance easier. The maintenance of the machine can be done at low costs.
Approximate performance (basic machine)*:
|
120-250 m˛/h |
Approximate performance (professional SET)*:
|
200-300 m˛/h |
Recovery tank capacity:
|
35 litres |
Solution tank capacity:
|
35 litres |
Vacuum motor:
Power:
Maximum waterlift:
Maximum air-flow:
|
3 stages - High waterlift
1500 W 3400 mm H2O 45 l/sec. |
Pump with by-pass:
Power:
Maximum pressure:
Maximum water-flow:
|
membrane 80 W 9 bar 4,5 l/min |
Cleaning width (carpet/hard floor):
|
400 mm |
Number of nozzles:
|
4 |
Adjustable waterflow: |
Yes |
Instant hot water unit: |
Optional (HT1800) |
Rotating brush:
|
1 x 120 W 600 rot/min 364 mm |
SMARTKIT system (for automatic chemical dosing, prespray and rinsing): |
Optional (SMARTKIT-CH + PRESPRAY-MX) |
Cable lenght:
|
15 m |
Hose lenght:
|
Optional |
Weight (machine body):
|
50 kg |
Weight (packaged machine):
|
64 Kg |
Dimensions:
|
cm 42 x 104 x 96 h |
Package dimensions:
|
cm 50 x 110 x 114 h |
Units/pallet:
|
1 pc/pallet (cm 50 x 110 x 114 h) |
Standard color:
|
Blue |
Tank construction:
|
High density polyethylene |
Sound pressure level (3m/1m - ISO3744):
|
64 dB(A)
/ 70 dB(A) |
Power supply:
| cable - 220-240V 50-60Hz
(other voltages on request)
|
(*) The effective performance depends on the type of cleaning required: restorative deep cleaning - maintenance cleaning. |
